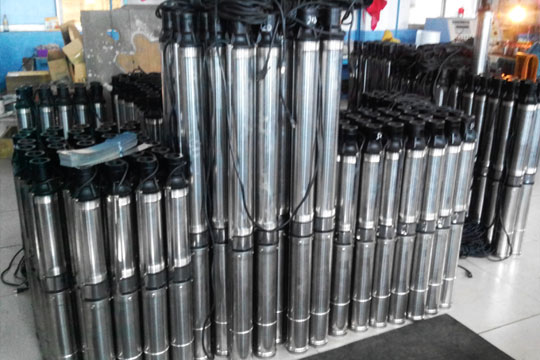

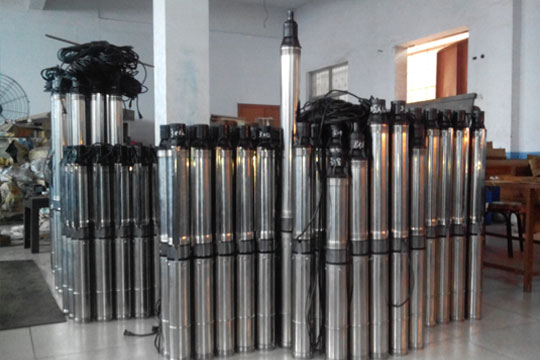

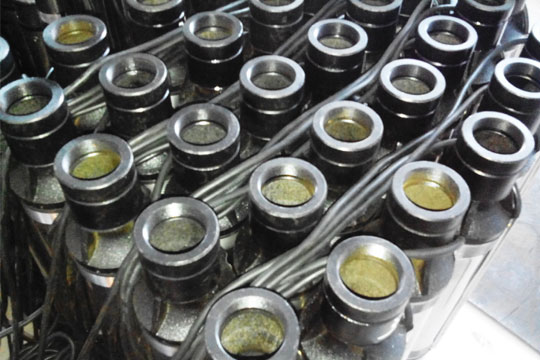

4SP type stainless steel multistage deep well submersible pump is a new high-grade machine for getting underground water. It is widely used for water supply and discharge in industrial and mining enterprises, for farm land irrigation, for getting underground water for private use. The main parts of the pump are all made of stainless steel and copper alloy, so has such features as anti-corrosion, wear resistance, energy-saving, high efficiency and fully reliable. Besides, as it has compact structure, small and light, it is easy to maintain, transport, install and use. When used in combination with automatic energy-saving high efficiency control box, it can be protected against over temperature, short circuit, over load and under voltage, safe and reliable to use.

Application range

Water supply system
Boost
Agricultural irrigation
All kinds of industrial purposes

Working Condition

1.Solid matter in water shall not be over 0.01% (weight ratio);
2.Chemical substances content in water shall not be over 1.5mg/L;
3.Ion content in water shall not be above 400mg/L;
4.Water PH value: 6.5~8.5;
Voltage: three-phase 380V±10%, single-phase 220V±10%;
Motor power: single phase 0.37KW—2.2KW, three-phase 0.55KW—7.5KW.

Product features

1. Full lift structure
2. All stainless steel anti-corrosive structure
3. High lift, large flow, energy-saving
4. New “float type”, no axial pressure force
5. Excellent performance in pumping water with sands; impeller and discharge bowl are made of wear resistant material.
6. The pump and the motor matches well with corresponding sizes. You can assemble or change them freely.
7. Pressure balance film, can reach as deep as 120m under water.

Paramter

Motor：
Max flux: 20m3/h
Accord with NEMA standard
Insulation grade: B
Protective grade: IP68
Max external diameter: Ф95mm
Max liquid temperature: 35℃
