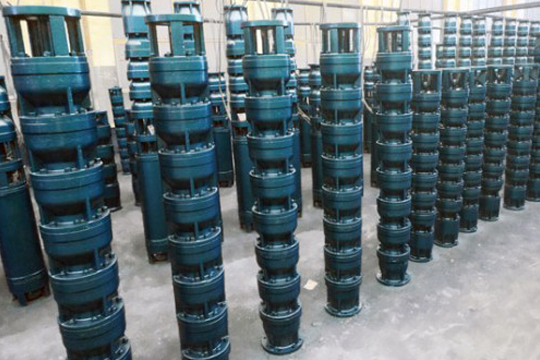

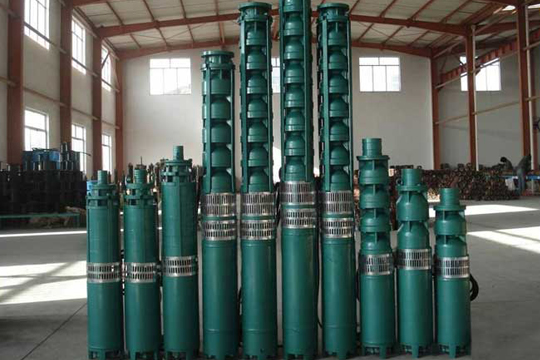

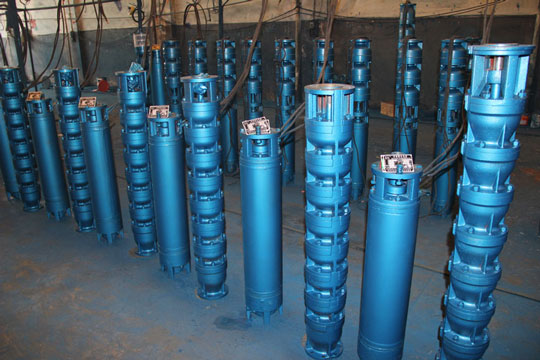

QJG High Lift Submersible Pump

Flow: 2-120m3/h

Lift： 36-2000m

Caliber： φ100-φ200mm

Power： 0.75-280KW

Temperate： -15~120°C

Phone:+86-180-3748-7502(WhatsApp, WeChat) E-mail:[email protected]
Download the product manual
Follow Us:
Chat Online Leave Message
Product Description

QJG High Lift Submersible Pump widely used in farmland irrigation, spray irrigation and water-use, industrial and civil buildings, mountain diversion and in low-lying areas dunes, urban and rural mining supply, drainage and other water conservancy facilities.

QJG High Lift Submersible Pump Material:

Impeller: Cast iron HT200,or stainless steel
Pump bowl: Cast iron HT200,or stainless steel,such as ss304 ss316
Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
Motor Seal: Rubber O-ring seal,mechanical seal
Motor regulating sleeve: rubber

QJG High Lift Submersible Pump Using condition:

(1). 380V voltage deviation is no more than ±5%,frequency is 50HZ, three -phase power deviation is no more than ±1%.
(2). Motor cavity must be filled with water.
(3). The first stage impeller of the pump should be more than 2mm below the moving water surface, pump unit should be less than 70m below the static water level.
(4). The distance from the motor bottom to well bottom must be more than 3m.
(5). Water temperature should be no more than 20°C.
(6). Sand content of the water ( by mass) should be no more than 0.01%.
(7). PH value of water 6.5-8.5.
(8). Hydrogen sulfide content of the water should be no more than 1.5mg/L.
(9). Chloride ion content of the water should be no more than 400mg/L.
(10). Water yield of water source should ensure the requirements of pump continuous working.

Technical Parameters

Model Flow (m³/h) Lift (m) Power (kw) Diameter (mm)
184QJG120-500 120 500 280 200
184QJG120-400 120 400 250 200
184QJG120-300 120 300 180 200
184QJG120-200 120 200 120 200
184QJG100-600 100 600 280 200
184QJG100-500 100 500 220 200
184QJG100-400 100 400 180 200
184QJG100-300 100 300 150 200
184QJG80-600 80 600 220 200
184QJG80-500 80 500 180 200
184QJG80-400 80 400 150 200
184QJG80-300 80 300 120 200
184QJG60-800 60 800 250 200
184QJG60-600 60 600 180 200
184QJG60-500 60 500 150 200
184QJG60-400 60 400 120 200
184QJG60-300 60 300 60 200
184QJG40-1200 40 1200 250 200
184QJG40-1000 40 1000 220 200
184QJG40-800 40 800 180 200
184QJG40-600 40 600 130 200
184QJG40-500 40 500 110 200
143QJG70-800 70 800 280 150
143QJG70-700 70 700 250 150
143QJG70-600 70 600 220 150
143QJG70-500 70 500 180 150
143QJG70-450 70 450 150 150
143QJG70-400 70 400 150 150
143QJG70-350 70 350 130 150
143QJG70-300 70 300 110 150
143QJG70-250 70 250 90 150
143QJG70-200 70 200 75 150
143QJG70-150 70 150 55 150
143QJG70-100 70 100 37 150
143QJG60-800 60 800 250 150
143QJG60-700 60 700 220 150
143QJG60-600 60 600 180 150
143QJG60-500 60 500 150 150
143QJG60-450 60 450 150 150
143QJG60-400 60 400 130 150
143QJG60-350 60 350 110 150
143QJG60-300 60 300 90 150
143QJG60-250 60 250 75 150
143QJG60-200 60 200 64 150
143QJG60-150 60 150 45 150
143QJG60-100 60 100 30 150
143QJG50-1000 50 1000 280 150
143QJG50-800 50 800 220 150
143QJG50-700 50 700 200 150
143QJG50-600 50 600 180 150
143QJG50-500 50 500 150 150
143QJG50-450 50 450 130 150
143QJG50-400 50 400 110 150
143QJG50-350 50 350 100 150
143QJG50-300 50 300 90 150
143QJG50-250 50 250 64 150
143QJG50-200 50 200 55 150
143QJG50-150 50 150 37 150
143QJG50-100 50 100 25 150
143QJG40-1200 40 1200 250 150
143QJG40-1000 40 1000 220 150
143QJG40-800 40 800 180 150
143QJG40-700 40 700 150 150
143QJG40-600 40 600 130 150
143QJG40-500 40 500 110 150
143QJG40-450 40 450 100 150
143QJG40-400 40 400 90 150
143QJG40-350 40 350 75 150
143QJG40-300 40 300 64 150
143QJG40-250 40 250 55 150
143QJG40-200 40 200 37 150
143QJG40-150 40 150 30 150
143QJG40-100 40 100 22 150
143QJG30-1500 30 1500 220 150
143QJG30-1200 30 1200 180 150
143QJG30-1000 30 1000 150 150
143QJG30-800 30 800 120 150
143QJG30-700 30 700 110 150
143QJG30-600 30 600 90 150
143QJG30-500 30 500 75 150
143QJG30-450 30 450 75 150
143QJG30-400 30 400 64 150
143QJG30-350 30 350 55 150
143QJG30-300 30 300 45 150
143QJG30-250 30 250 37 150
143QJG30-200 30 200 30 150
143QJG30-150 30 150 22 150
143QJG30-100 30 100 15 150
143QJG25-1000 25 1000 120 150
143QJG25-950 25 950 120 150
143QJG25-900 25 900 110 150
143QJG25-850 25 850 100 150
143QJG25-800 25 800 100 150
143QJG25-750 25 750 90 150
143QJG25-700 25 700 90 150
143QJG25-650 25 650 75 150
143QJG25-600 25 600 75 150
143QJG25-550 25 550 63 150
143QJG25-500 25 500 63 150
143QJG25-450 25 450 55 150
143QJG25-400 25 400 55 150
143QJG25-350 25 350 45 150
143QJG25-300 25 300 37 150
143QJG25-250 25 250 30 150
143QJG25-200 25 200 22 150
143QJG22-1000 22 1000 110 150
143QJG22-950 22 950 110 150
143QJG22-900 22 900 100 150
143QJG22-850 22 850 100 150
143QJG22-800 22 800 90 150
143QJG22-750 22 750 90 150
143QJG22-700 22 700 75 150
143QJG22-650 22 650 75 150
143QJG22-600 22 600 63 150
143QJG22-550 22 550 63 150
143QJG22-500 22 500 55 150
143QJG22-450 22 450 55 150
143QJG22-400 22 400 45 150
143QJG22-350 22 350 37 150
143QJG22-300 22 300 37 150
143QJG22-250 22 250 30 150
143QJG22-200 22 200 22 150
143QJG20-2000 20 2000 200 150
143QJG20-1800 20 1800 180 150
143QJG20-1500 20 1500 150 150
143QJG20-1200 20 1200 120 150
143QJG20-1000 20 1000 100 150
143QJG20-800 20 800 75 150
143QJG20-700 20 700 75 150
143QJG20-600 20 600 64 150
143QJG20-500 20 500 55 150
143QJG20-450 20 450 45 150
143QJG20-400 20 400 45 150
143QJG20-350 20 350 37 150
143QJG20-300 20 300 30 150
143QJG20-250 20 250 22 150
143QJG20-200 20 200 18.5 150
143QJG20-150 20 150 13 150
143QJG20-100 20 100 9.2 150
143QJG15-2000 15 2000 180 150
143QJG15-1800 15 1800 150 150
143QJG15-1500 15 1500 120 150
143QJG15-1200 15 1200 100 150
143QJG15-1000 15 1000 90 150
143QJG15-800 15 800 64 150
143QJG15-700 15 700 64 150
143QJG15-600 15 600 55 150
143QJG15-500 15 500 45 150
143QJG15-450 15 450 37 150
143QJG15-400 15 400 37 150
143QJG15-350 15 350 30 150
143QJG15-300 15 300 22 150
143QJG15-250 15 250 18.5 150
143QJG15-200 15 200 15 150
143QJG15-150 15 150 11 150
143QJG15-100 15 100 7.5 150
143QJG10-2000 10 2000 110 150
143QJG10-1800 10 1800 90 150
143QJG10-1500 10 1500 75 150
143QJG10-1200 10 1200 64 150
143QJG10-1000 10 1000 55 150
143QJG10-800 10 800 45 150
143QJG10-700 10 700 37 150
143QJG10-600 10 600 37 150
143QJG10-500 10 500 30 150
143QJG10-450 10 450 25 150
143QJG10-400 10 400 22 150
143QJG10-350 10 350 18.5 150
143QJG10-300 10 300 15 150
143QJG10-250 10 250 13 150
143QJG10-200 10 200 11 150
143QJG10-150 10 150 7.5 150
143QJG10-100 10 100 5.5 150
143QJG5-2000 5 2000 64 150
143QJG5-1800 5 1800 64 150
143QJG5-1500 5 1500 55 150
143QJG5-1200 5 1200 45 150
143QJG5-1000 5 1000 37 150
143QJG5-800 5 800 30 150
143QJG5-700 5 700 25 150
143QJG5-600 5 600 22 150
143QJG5-500 5 500 18.5 150
143QJG5-450 5 450 15 150
143QJG5-400 5 400 13 150
143QJG5-350 5 350 11 150
143QJG5-300 5 300 9.2 150
143QJG5-250 5 250 7.5 150
143QJG5-200 5 200 5.5 150
143QJG5-150 5 150 4 150
143QJG5-100 5 100 3 150
118QJG30-700 30 700 110 125
118QJG30-600 30 600 90 125
118QJG30-500 30 500 75 125
118QJG30-450 30 450 64 125
118QJG30-400 30 400 64 125
118QJG30-350 30 350 55 125
118QJG30-300 30 300 45 125
118QJG30-250 30 250 37 125
118QJG30-200 30 200 30 125
118QJG20-900 20 900 90 125
118QJG20-800 20 800 90 125
118QJG20-700 20 700 75 125
118QJG20-600 20 600 64 125
118QJG20-500 20 500 55 125
118QJG20-450 20 450 55 125
118QJG20-400 20 400 45 125
118QJG20-350 20 350 37 125
118QJG20-300 20 300 37 125
118QJG20-250 20 250 30 125
118QJG20-200 20 200 22 125
118QJG15-1400 15 1400 110 125
118QJG15-1200 15 1200 90 125
118QJG15-1000 15 1000 75 125
118QJG15-800 15 800 64 125
118QJG15-700 15 700 55 125
118QJG15-600 15 600 55 125
118QJG15-500 15 500 45 125
118QJG15-450 15 450 37 125
118QJG15-400 15 400 37 125
118QJG15-350 15 350 30 125
118QJG15-300 15 300 25 125
118QJG15-250 15 250 22 125
118QJG15-200 15 200 18.5 125
118QJG10-2000 10 2000 110 125
118QJG10-1800 10 1800 100 125
118QJG10-1500 10 1500 90 125
118QJG10-1200 10 1200 75 125
118QJG10-1000 10 1000 55 125
118QJG10-800 10 800 45 125
118QJG10-700 10 700 45 125
118QJG10-600 10 600 37 125
118QJG10-500 10 500 30 125
118QJG10-450 10 450 25 125
118QJG10-400 10 400 22 125
118QJG10-350 10 350 22 125
118QJG10-300 10 300 18.5 125
118QJG10-250 10 250 15 125
118QJG8-2000 8 2000 100 125
118QJG8-1800 8 1800 90 125
118QJG8-1500 8 1500 75 125
118QJG8-1200 8 1200 55 125
118QJG8-1000 8 1000 45 125
118QJG8-800 8 800 37 125
118QJG8-700 8 700 37 125
118QJG8-600 8 600 30 125
118QJG8-500 8 500 25 125
118QJG8-450 8 450 22 125
118QJG8-400 8 400 18.5 125
118QJG8-350 8 350 18.5 125
118QJG8-300 8 300 15 125
118QJG5-2000 5 2000 64 125
118QJG5-1800 5 1800 55 125
118QJG5-1500 5 1500 45 125
118QJG5-1200 5 1200 37 125
118QJG5-1000 5 1000 30 125
118QJG5-800 5 800 25 125
118QJG5-700 5 700 22 125
118QJG5-600 5 600 18.5 125
118QJG5-500 5 500 15 125
118QJG5-450 5 450 13 125
118QJG5-400 5 400 11 125
118QJG3-2000 3 2000 45 125
118QJG3-1800 3 1800 37 125
118QJG3-1500 3 1500 30 125
118QJG3-1200 3 1200 25 125
118QJG3-1000 3 1000 22 125
118QJG3-800 3 800 18.5 125
118QJG3-700 3 700 15 125
118QJG3-600 3 600 13 125
118QJG3-500 3 500 11 125
100QJG10-171/38 10 171 7.5 100
100QJG10-149/33 10 149 7.5 100
100QJG10-126/28 10 126 5.5 100
100QJG10-108/24 10 108 5.5 100
100QJG10-90/20 10 90 4 100
100QJG10-81/18 10 81 4 100
100QJG10-68/15 10 68 3 100
100QJG10-54/12 10 54 3 100
100QJG10-45/10 10 45 2.2 100
100QJG10-36/8 10 36 2.2 100
100QJG8-190/38 8 190 7.5 100
100QJG8-165/33 8 165 7.5 100
100QJG8-140/28 8 130 5.5 100
100QJG8-120/24 8 120 5.5 100
100QJG8-100/20 8 100 4 100
100QJG8-90/18 8 90 4 100
100QJG8-75/15 8 75 3 100
100QJG8-60/12 8 60 3 100
100QJG8-50/10 8 50 2.2 100
100QJG8-40/8 8 40 2.2 100
100QJG5-288/48 5 288 7.5 100
100QJG5-252/42 5 252 7.5 100
100QJG5-210/35 5 210 5.5 100
100QJG5-180/30 5 180 5.5 100
100QJG5-150/25 5 150 4 100
100QJG5-120/20 5 120 3 100
100QJG5-96/16 5 96 3 100
100QJG5-78/13 5 78 2.2 100
100QJG5-60/10 5 60 1.5 100
100QJG5-42/7 5 42 1.1 100
100QJG3-408/68 3 408 7.5 100
100QJG3-360/60 3 360 7.5 100
100QJG3-300/50 3 300 5.5 100
100QJG3-252/42 3 252 5.5 100
100QJG3-216/36 3 216 4 100
100QJG3-180/30 3 180 4 100
100QJG3-150/25 3 150 3 100
100QJG3-114/19 3 114 2.2 100
100QJG3-96/16 3 96 2.2 100
100QJG3-78/13 3 78 1.5 100
100QJG3-60/10 3 60 1.1 100
100QJG3-42/7 3 42 0.75 100
100QJG2-580/116 2 580 7.5 100
100QJG2-480/96 2 480 7.5 100
100QJG2-400/80 2 400 5.5 100
100QJG2-350/70 2 350 5.5 100
100QJG2-300/60 2 300 4 100
100QJG2-250/50 2 250 3 100
100QJG2-200/40 2 200 3 100
100QJG2-170/34 2 170 2.2 100
100QJG2-150/30 2 150 2.2 100
100QJG2-120/24 2 120 1.5 100
100QJG2-100/20 2 100 1.5 100
100QJG2-80/16 2 80 1.1 100
100QJG2-70/14 2 70 1.1 100
100QJG2-55/11 2 55 0.75 100
100QJG2-40/8 2 40 0.55 100

Process Flow

Company Video

Inquiry

Please Feel free to give your inquiry in the form below.We will reply you in 24 hours

  • Name:*
  • Country:*
  • E-mail:*
  • Phone:*
  • Message: *
    • [email protected]
    +8618037487502
    TOP
    WEL PUMP
