QJT Mine Submersible Pump

Flow: 30-500 m3/h

Lift: 102-1210m

Caliber: φ175-φ600mm

Power: 30-2200kW

Temperate: -15~120°C

Phone:+86-180-3748-7502(WhatsApp, WeChat) E-mail:[email protected]
Download the product manual
Follow Us:
Chat Online Leave Message
Product Description

QJT Mine Submersible Pump Application:

QJT Mine Submersible Pump(vertical or horizontal, large flow), is a new water lifting equipment developed by Shanghai Weihu Pump Co., Ltd. It is widely used to draw water from rivers or lakes, water drainage in mines, construction or rebuilding of urban tap water system, secondary regional water supply systems. This is a bottom suction type of pump. It can pump all the water on ground. It uses submersible three-phase asynchronous motor. It takes little space, easy to install and use, reliable, and has a long service life.

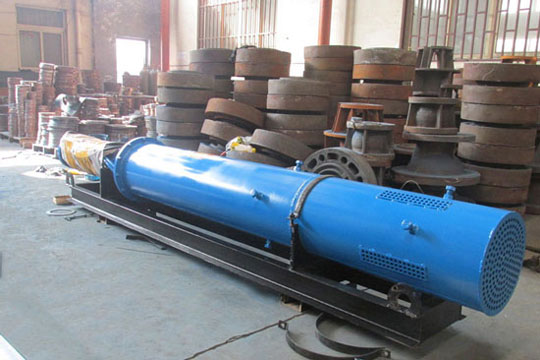

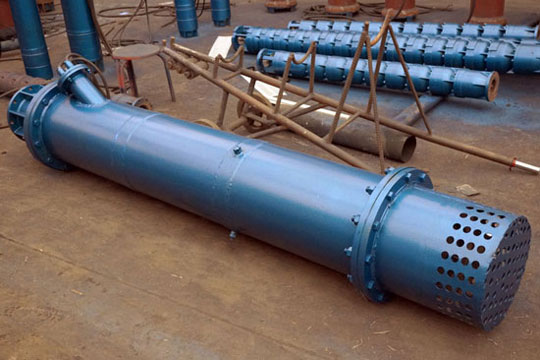

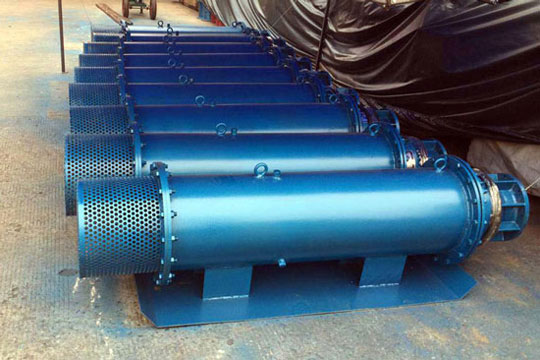

QJT Mine Submersible Pump can be used vertically or horizontally, which makes it suits the complex surroundings in mines better. The traditional QJ series horizontal submersible pump can not drain the water in mines totally, not suitable for working in mines blow ground. The new mines submersible pump can keep the water level in mines below 0.01m. Its flow rate can reach 650tons per hour, lift range 1500 meters.

QJT Mine Submersible Pump using condition:

1. The solid volume content of the liquid being pumped shall be below 2%. The maximum density of the liquid being pumped is 1.2×103kg/m³.
2. The PH value of the liquid shall be 4~10;
3. The temperature of the liquid shall be lower than 40℃.

QJT Mine Submersible Pump Material

Cast steel, stainless steel

QJT Mine Submersible Pump Product features

1. The motor and pump are connected as a whole. It works under water, no sparks, explosion-resistant, safe and reliable.
2. It has no special requirement on well walls. It only needs the water pipe to be strong enough to bear certain pressure.
3. Easy to install and maintain, takes little space, no need of pump house.
4. Simple structure, saving raw materials.
5. High efficiency, energy-saving, high lift for single grade, large flow, high lift, imported high efficiency energy saving motor from Germany. For example, AT200QJX series submersible motor can reach 110KW(maximum external diameter 184mm), second grade rotate speed(2900r/min) can reach 410KW, the minimum external diameter can be 134mm.

Technical Parameters

Model Flow (m³/h) Lift (m) Power (kw) Diameter (mm)
800QJT500-720 500 720 2200 800
800QJT500-660 500 660 1900 800
800QJT500-600 500 600 1700 800
800QJT500-540 500 540 1500 800
800QJT500-480 500 480 1300 800
800QJT500-420 500 420 1150 800
800QJT500-360 500 360 1000 800
800QJT500-300 500 300 850 800
800QJT500-240 500 240 620 800
800QJT500-180 500 180 470 800
800QJT400-900 400 900 2200 800
800QJT400-825 400 825 1900 800
800QJT400-750 400 750 1700 800
800QJT400-675 400 675 1500 800
800QJT400-600 400 600 1300 800
800QJT400-525 400 525 1150 800
800QJT400-450 400 450 1000 800
800QJT400-375 400 375 850 800
800QJT400-300 400 300 620 800
800QJT400-225 400 225 470 800
800QJT350-732 350 732 1300 800
800QJT350-671 350 671 1150 800
800QJT350-610 350 610 1000 800
800QJT350-550 350 550 850 800
800QJT350-490 350 490 720 800
800QJT350-430 350 430 620 800
800QJT350-370 350 370 520 800
800QJT350-305 350 305 470 800
800QJT350-250 350 250 350 800
800QJT350-183 350 183 260 800
800QJT300-756 300 756 1300 800
800QJT300-700 300 700 1150 800
800QJT300-630 300 630 1000 800
800QJT300-567 300 567 850 800
800QJT300-504 300 504 720 800
800QJT300-441 300 441 620 800
800QJT300-380 300 380 520 800
800QJT300-315 300 315 470 800
800QJT300-252 300 252 350 800
800QJT300-190 300 190 260 800
800QJT250-800 250 800 1300 800
800QJT250-726 250 726 1150 800
800QJT250-660 250 660 1000 800
800QJT250-600 250 600 850 800
800QJT250-530 250 530 720 800
800QJT250-462 250 462 620 800
800QJT250-400 250 400 520 800
800QJT250-330 250 330 470 800
800QJT250-264 250 264 350 800
800QJT250-200 250 200 260 800
570QJT400-275 400 275 450 570
570QJT400-220 400 220 410 570
570QJT400-165 400 165 300 570
570QJT400-110 400 110 200 570
570QJT350-300 350 300 450 570
570QJT350-240 350 240 410 570
570QJT350-180 350 180 300 570
570QJT350-120 350 120 200 570
570QJT300-325 300 325 450 570
570QJT300-260 300 260 410 570
570QJT300-195 300 195 300 570
570QJT300-130 300 130 200 570
570QJT200-522 200 522 430 570
570QJT200-464 200 464 410 570
570QJT200-406 200 406 350 570
570QJT200-348 200 348 300 570
570QJT200-290 200 290 260 570
570QJT200-232 200 232 200 570
570QJT200-174 200 174 160 570
570QJT200-116 200 116 120 570
570QJT160-585 160 585 430 570
570QJT160-520 160 520 410 570
570QJT160-455 160 455 350 570
570QJT160-390 160 390 300 570
570QJT160-325 160 325 260 570
570QJT160-260 160 260 200 570
570QJT160-195 160 195 160 570
570QJT160-130 160 130 120 570
570QJT120-648 120 648 430 570
570QJT120-576 120 576 410 570
570QJT120-504 120 504 350 570
570QJT120-432 120 432 300 570
570QJT120-360 120 360 260 570
570QJT120-238 120 288 200 570
570QJT120-216 120 216 160 570
570QJT120-144 120 144 120 570
570QJT100-780 100 780 410 570
570QJT100-720 100 720 350 570
570QJT100-660 100 660 350 570
570QJT100-600 100 600 300 570
570QJT100-540 100 540 260 570
570QJT100-480 100 480 220 570
570QJT100-420 100 420 200 570
570QJT100-360 100 360 160 570
570QJT100-300 100 300 140 570
570QJT100-240 100 240 110 570
570QJT100-180 100 180 90 570
570QJT100-120 100 120 55 570
570QJT80-897 80 897 410 570
570QJT80-828 80 828 350 570
570QJT80-759 80 759 350 570
570QJT80-690 80 690 300 570
570QJT80-621 80 621 260 570
570QJT80-552 80 552 220 570
570QJT80-483 80 483 200 570
570QJT80-414 80 414 160 570
570QJT80-345 80 345 140 570
570QJT80-275 80 276 110 570
570QJT80-207 80 207 90 570
570QJT80-138 80 138 55 570
570QJT60-962 60 962 410 570
570QJT60-888 60 888 350 570
570QJT60-814 60 814 350 570
570QJT60-740 60 740 300 570
570QJT60-666 60 666 260 570
570QJT60-592 60 592 220 570
570QJT60-518 60 518 200 570
570QJT60-444 60 444 160 570
570QJT60-370 60 370 140 570
570QJT60-296 60 296 110 570
570QJT60-222 60 222 90 570
570QJT60-148 60 148 55 570
460QJT50-1100 50 1100 410 460
460QJT50-1050 50 1050 410 460
460QJT50-1000 50 1000 350 460
460QJT50-950 50 950 350 460
460QJT50-900 50 900 300 460
460QJT50-850 50 850 300 460
460QJT50-800 50 800 260 460
460QJT50-750 50 750 220 460
460QJT50-700 50 700 200 460
460QJT50-650 50 650 180 460
460QJT50-600 50 600 160 460
460QJT50-550 50 550 140 460
460QJT50-500 50 500 140 460
460QJT50-450 50 450 120 460
460QJT50-400 50 400 100 460
460QJT50-350 50 350 87 460
460QJT50-300 50 300 75 460
460QJT50-250 50 250 55 460
460QJT50-200 50 200 45 460
460QJT50-150 50 150 37 460
460QJT50-100 50 100 30 460
460QJT40-1122 40 1122 410 460
460QJT40-1071 40 1071 410 460
460QJT40-1020 40 1020 350 460
460QJT40-969 40 969 350 460
460QJT40-918 40 918 300 460
460QJT40-867 40 867 300 460
460QJT40-816 40 816 260 460
460QJT40-765 40 765 220 460
460QJT40-714 40 714 200 460
460QJT40-663 40 663 180 460
460QJT40-612 40 612 160 460
460QJT40-561 40 561 140 460
460QJT40-510 40 510 140 460
460QJT40-459 40 459 120 460
460QJT40-408 40 408 100 460
460QJT40-357 40 357 87 460
460QJT40-306 40 306 75 460
460QJT40-255 40 255 55 460
460QJT40-204 40 204 45 460
460QJT40-153 40 153 37 460
460QJT40-102 40 102 30 460
460QJT30-1210 30 1210 410 460
460QJT30-1155 30 1155 410 460
460QJT30-1100 30 1100 350 460
460QJT30-1045 30 1045 350 460
460QJT30-990 30 990 300 460
460QJT30-935 30 935 300 460
460QJT30-880 30 880 260 460
460QJT30-825 30 825 220 460
460QJT30-770 30 770 200 460
460QJT30-715 30 715 180 460
460QJT30-660 30 660 160 460
460QJT30-605 30 605 140 460
460QJT30-550 30 550 140 460
460QJT30-495 30 495 120 460
460QJT30-440 30 440 100 460
460QJT30-385 30 385 87 460
460QJT30-330 30 330 75 460
460QJT30-275 30 275 55 460
460QJT30-220 30 220 45 460
460QJT30-165 30 165 37 460
460QJT30-110 30 110 30 460
